MODEL9900 limited edition　Music Mixer STD Standard 2022year model [MODEL9900STD]

MODEL9900 Music Mixer STD Standard

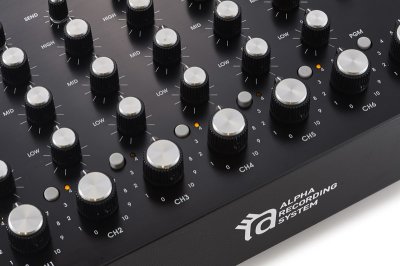

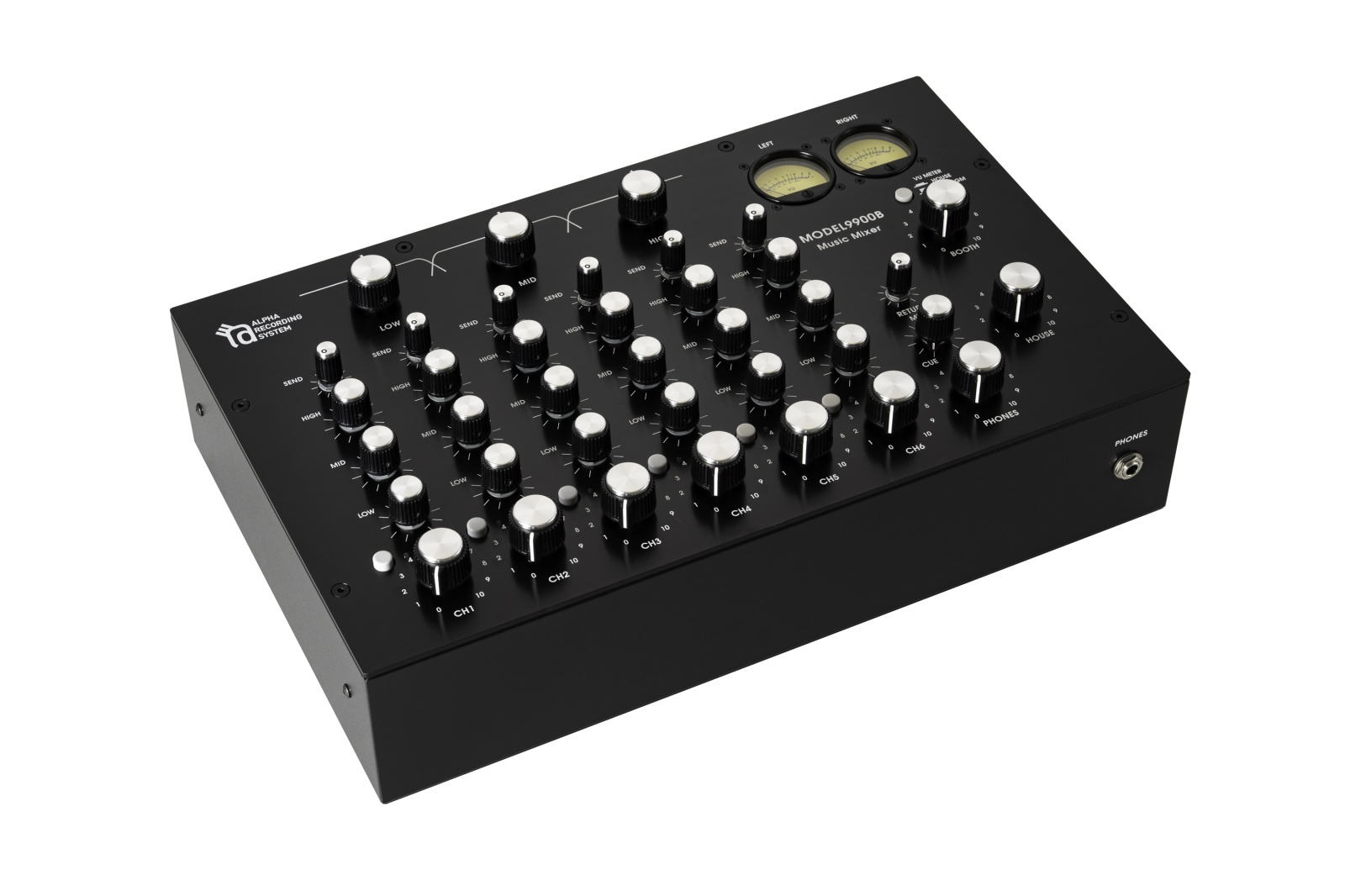

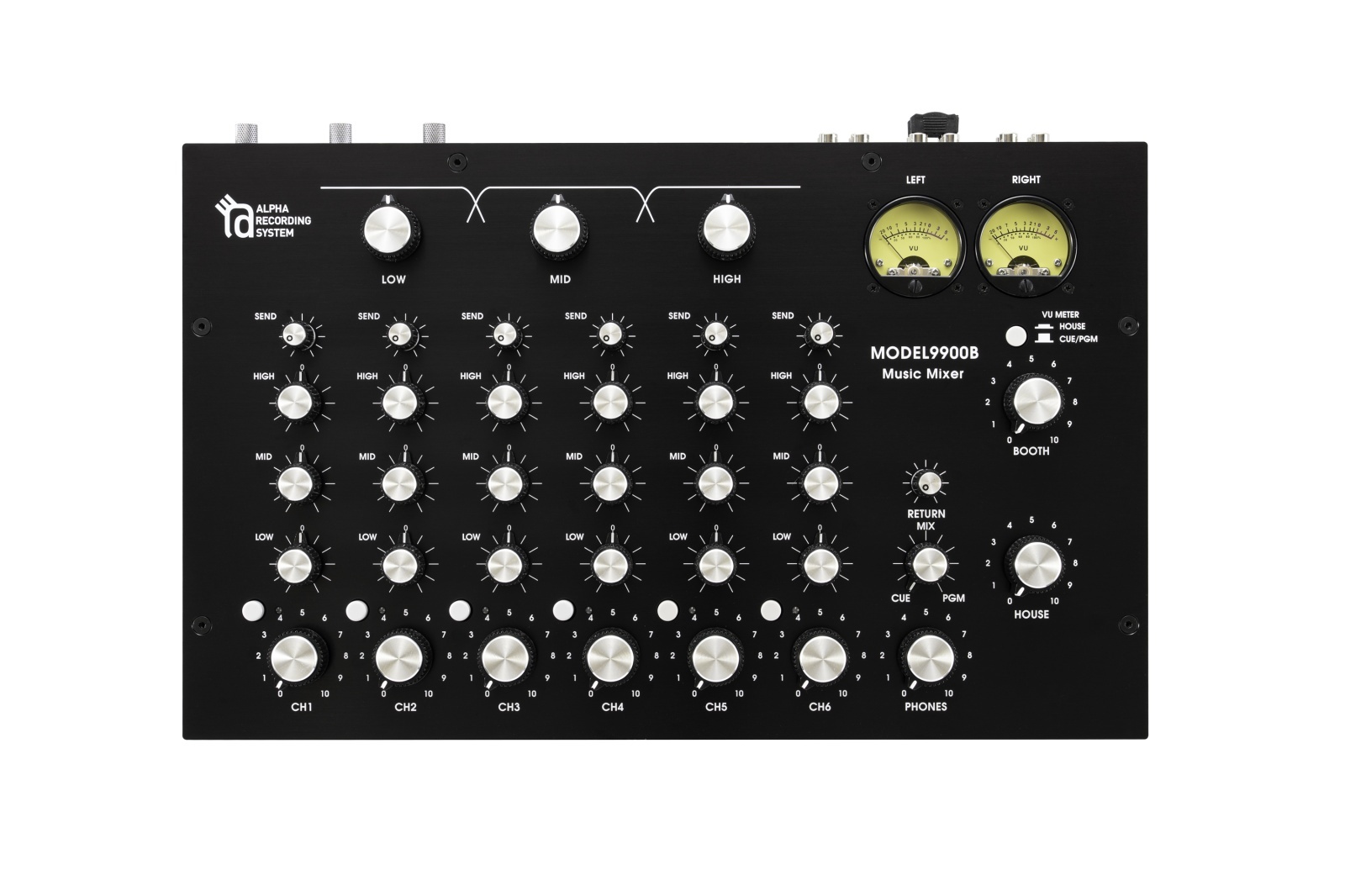

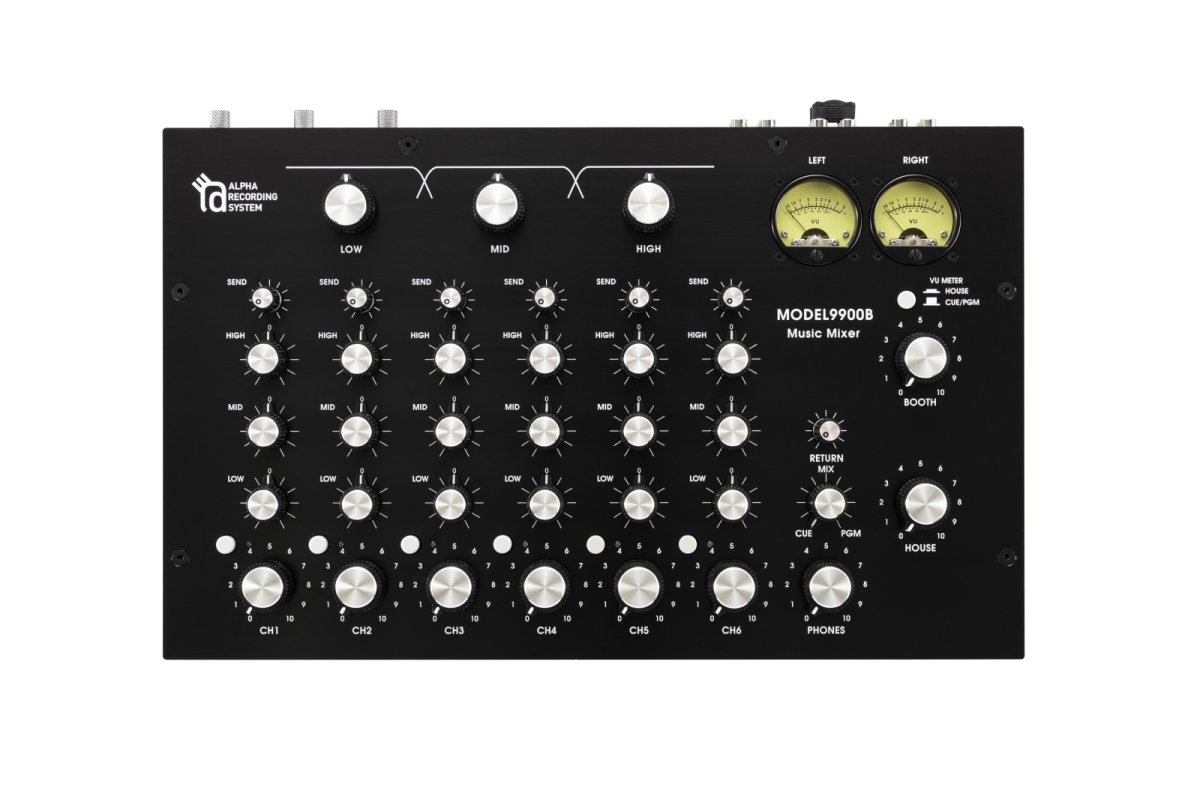

ARS MODEL 9900 DJ Mixer is a Japanese made,
6ch. rotary mixer with world's first　3band hybrid isoeq
Hi-eq Mid-eq Low -Iso on each channel.
The ARS 9900 is our Flagship Table top mixer.
This 6 channel High Quality Rotary DJ Mixer has a 3 band Isolator on the master.
Potentiometer and Switch are All ALPS .

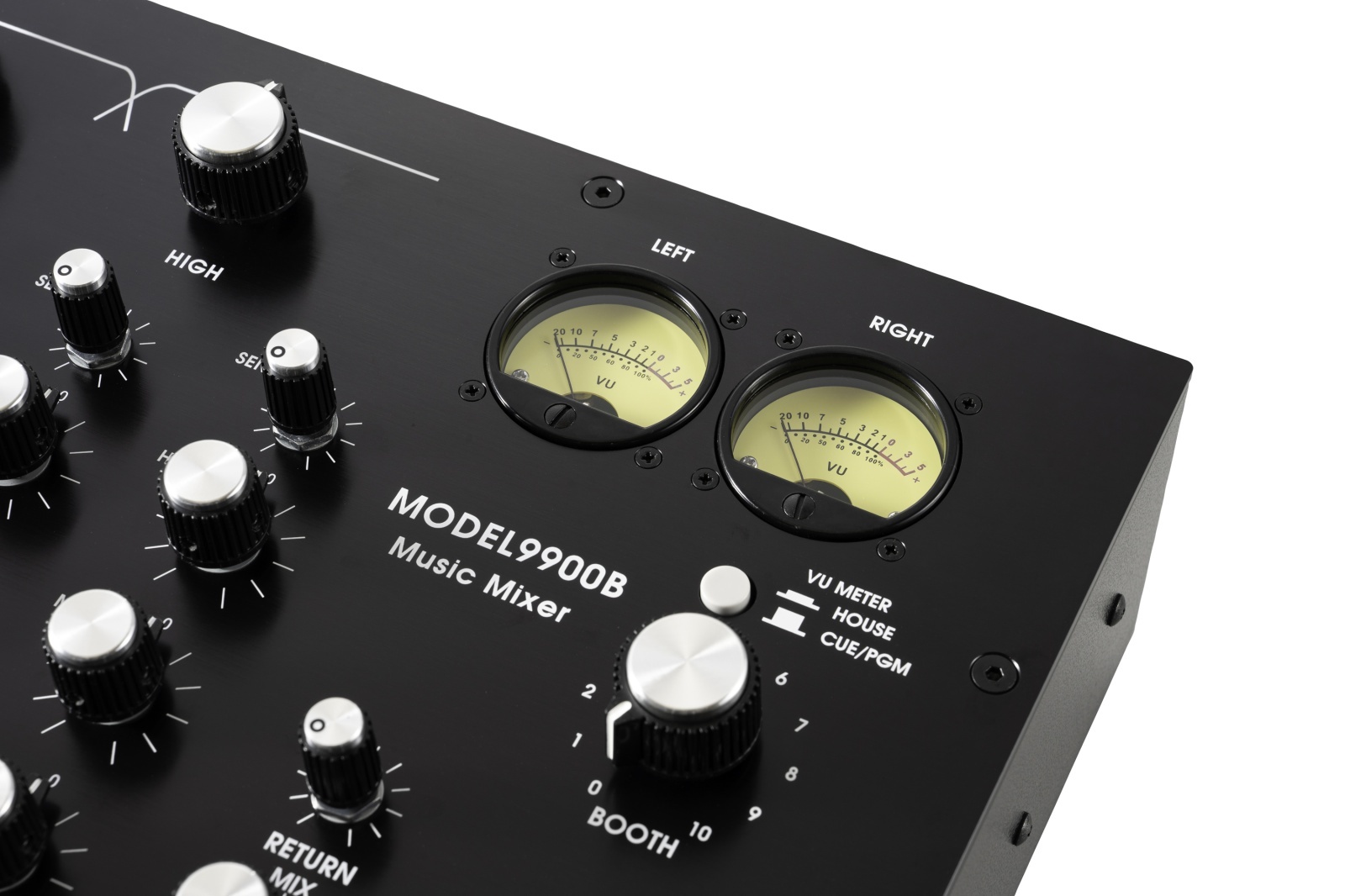

Vu Meter Made by Sifam
A long time in the development phase this mixer is a beautiful example of Japanese hand made precision workmanship.
Highly recommended.

It is designed with purist ideals with only essential features.

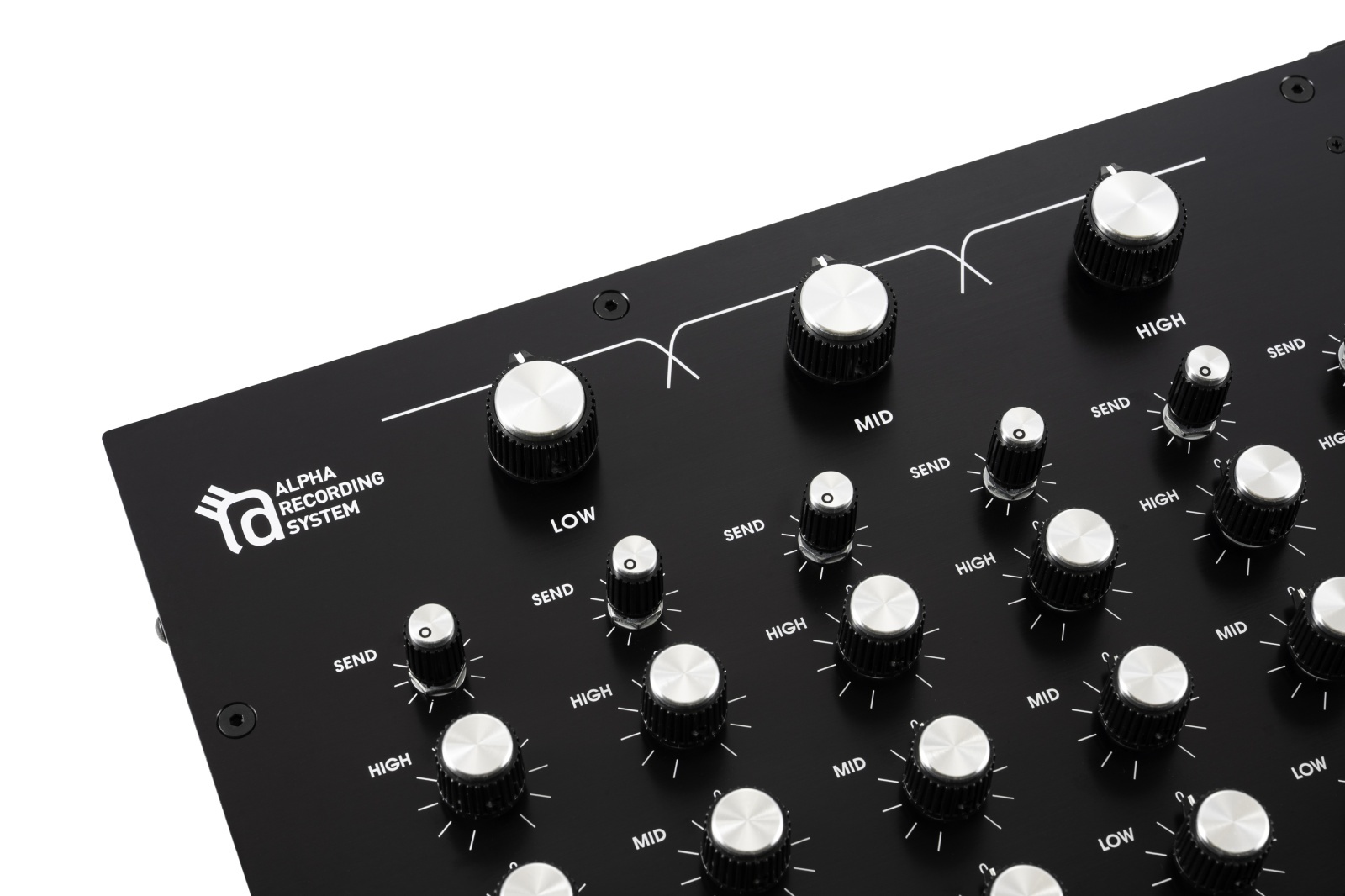

ARS 9900 has 3 band hybrid iso-eq hi-eq mid-eq low-iso on each channel and 3band Iso on the master.
The Master Isolators can be boost of cut from +18db ~ -∞.
The Ch hi-eq mid-eq can boost or cut from +12db ~ -12db. LOW-ISO boost of cut from +6db ~ -∞.
Each channel has Post Fader Send. also Return and Effect Loop.

* Due to the Model-9900 is designed for a professional use, The body is no power switch to avoid accidentally power off while playing.
* Minimizing the power noise by designing the All circuit board and the power circuit board independently and setting them apart.





[SPEC]

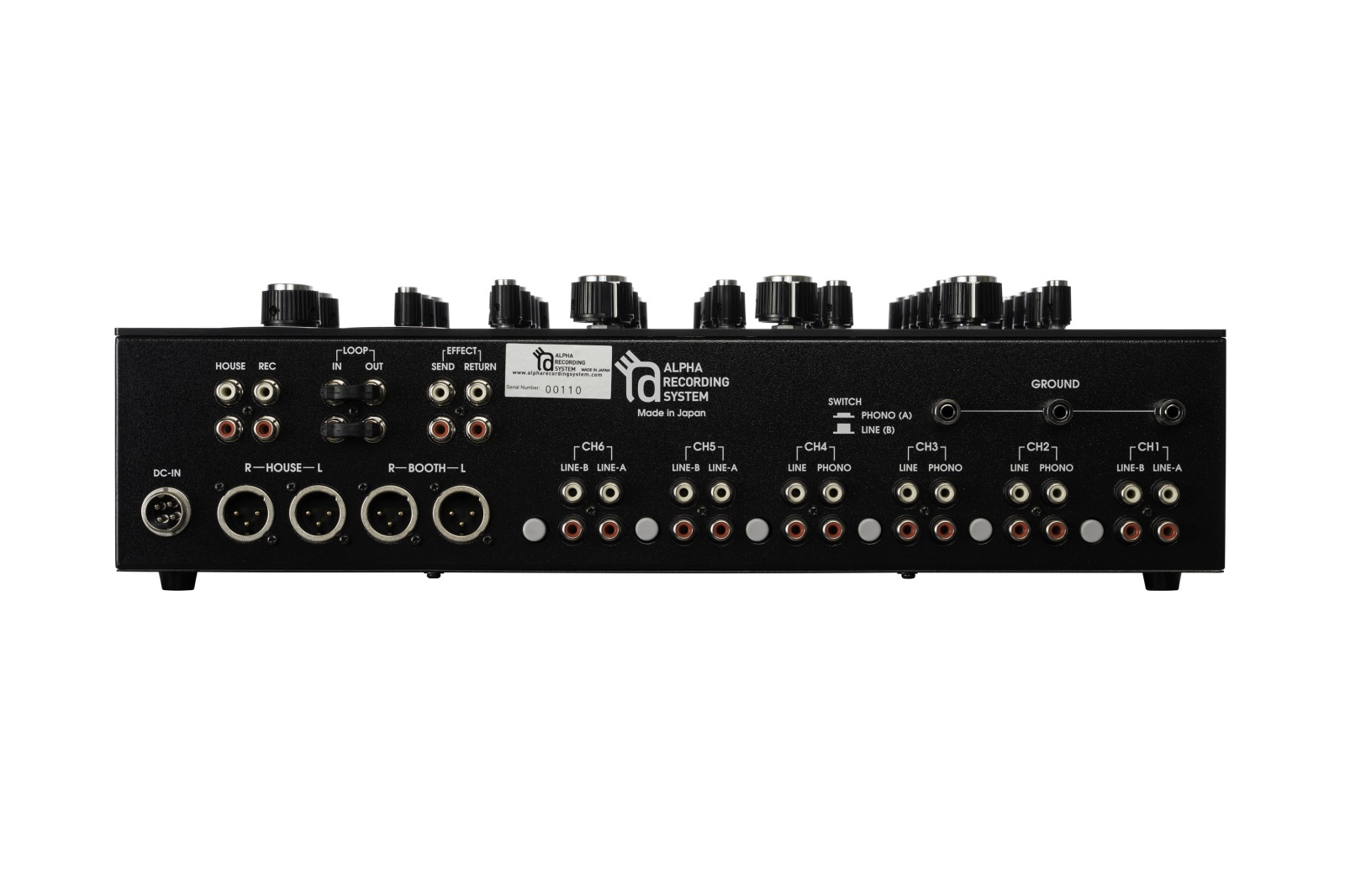

Input
Frequency Response: +-1dB 20Hz-20Khz
Input: 3 x Phono : 47K Ohm / 9 x Line: 20K Ohm
Effect Loop: RCA Unbalanced Impedance 20K Ohm
Return: RCA Unbalanced Impedance 20K Ohm

Output
House Output:RCA Unbalanced Impedance 1K Ohm/ XLR Balanced Impedance 100 Ohm
Booth Output:RCA Unbalanced Impedance 1K Ohm/ XLR Balanced Impedance 100 Ohm
Tape Output: RCA Unbalanced Impedance 1K Ohm

Effect Loop :RCA Unbalanced Impedance 600 Ohm
Effect Return:RCA Unbalanced Impedance 600 Ohm

Power Consumption: 30w
Power Requirement: US-115V/EU-230V(Selectable) 50/60Hz
Dimensions: (W)460 x (H)280 x (D)100 mm
Front Panel Color: Black
